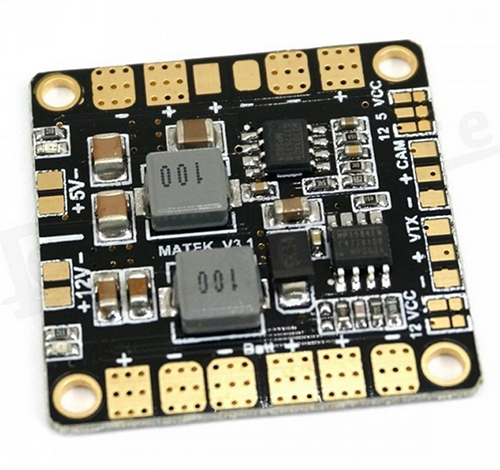

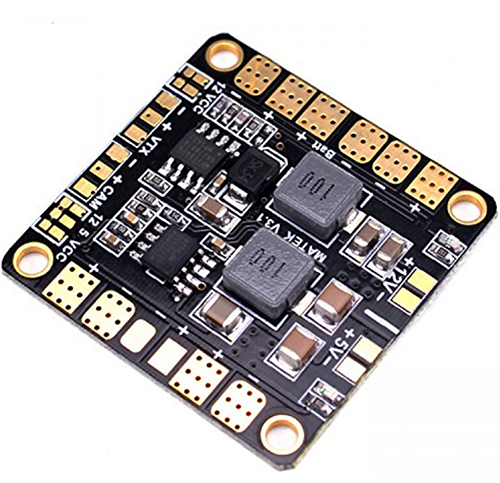

PDB Matek v3.1 BEC 12V & 5V

SIN STOCK

$27750

Sin Stock
Consultar

Features:

- 2oz copper & 4-layers PCB.

- ESC & Battery solder tabs in pairs

- Solder Bridges of various voltage for Camera & VTX.

- DC/DC synchronous buck regulator, Efficiency is up to 95%.

- TVS(Transient Voltage Suppressor) protection for DC/DC chip.

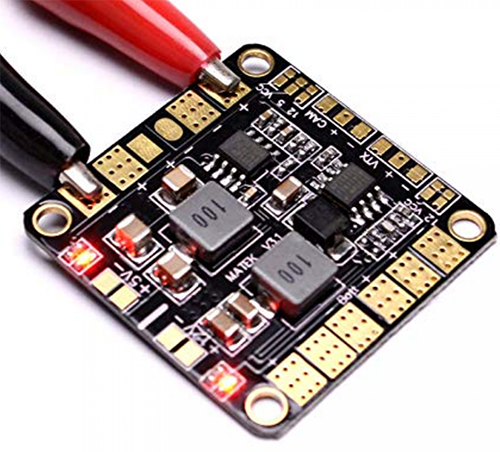

- 5V & 12V Output LED indicators & Short circuit tolerant

Specification:

General:

- Input voltage range (2S-6S operation): 7.2 - 26VDC

- Regulated 5V and 12V outputs

- LED power indicators ( 5V & 12V outputs )

- 4 ESC outputs

ESC outputs:

- Continuous current: 20A per output

- Peak current (10 seconds/minute): 30A per output

BEC 5V output:

- Designed for RC Receivers, Flight controllers, OSD, and Servos.

- Voltage: 5.0 +/- 0.1VDC

- Continuous current: 3 Amps

- Short-circuit tolerant (10 seconds/minute)

- LED (indicates voltage is in regulation, within 10%)

BEC 12V output:

- The battery should be 4S~6S LiPo

- Standard output designed to power cameras and video transmitters,etc.

- Voltage: 12.0 +/- 0.2VDC

- Continuous current: 2 Amps (Max.3A 10s/minute)

- Short-circuit tolerant (10 seconds/minute)

- LED (indicates voltage is in regulation, within 10%)

CAM & VTX voltage bridge

- 3S operation. choose VCC for 12V camera & 12V VTX, VCC=Battery Voltage.

- 4~6S operation, choose 12 for 12V camera & 12V VTX

- 3~6S operation, choose 5 for 5V camera

- Video pass through from the CAM pad to the VTX pad

Physical:

- Dimensions: 36 x 36mm

- Weight: 6g

- Mounting holes 30.5mm square spacing

Package including :

1 x Power Distribution Board PDB
